STANDARD FEATURES
Made to Sanitary Specifications
304 Stainless Steel
Split Ring Seals
Air Purge
304 Stainless Steel Lid and Grate
180 grit finish on interior and exterior stainless steel surfaces
Safety Limit Switches (prevents operation when grates are raised)
Manually Operated Center Discharge with Pivot Style Gate
WARRANTY- One year warranty on the ribbon and shaft against mfg defects. One year warranty on the remaining blender against mfg defects.
| DESCRIPTION 1 LID / 1 GRATE |

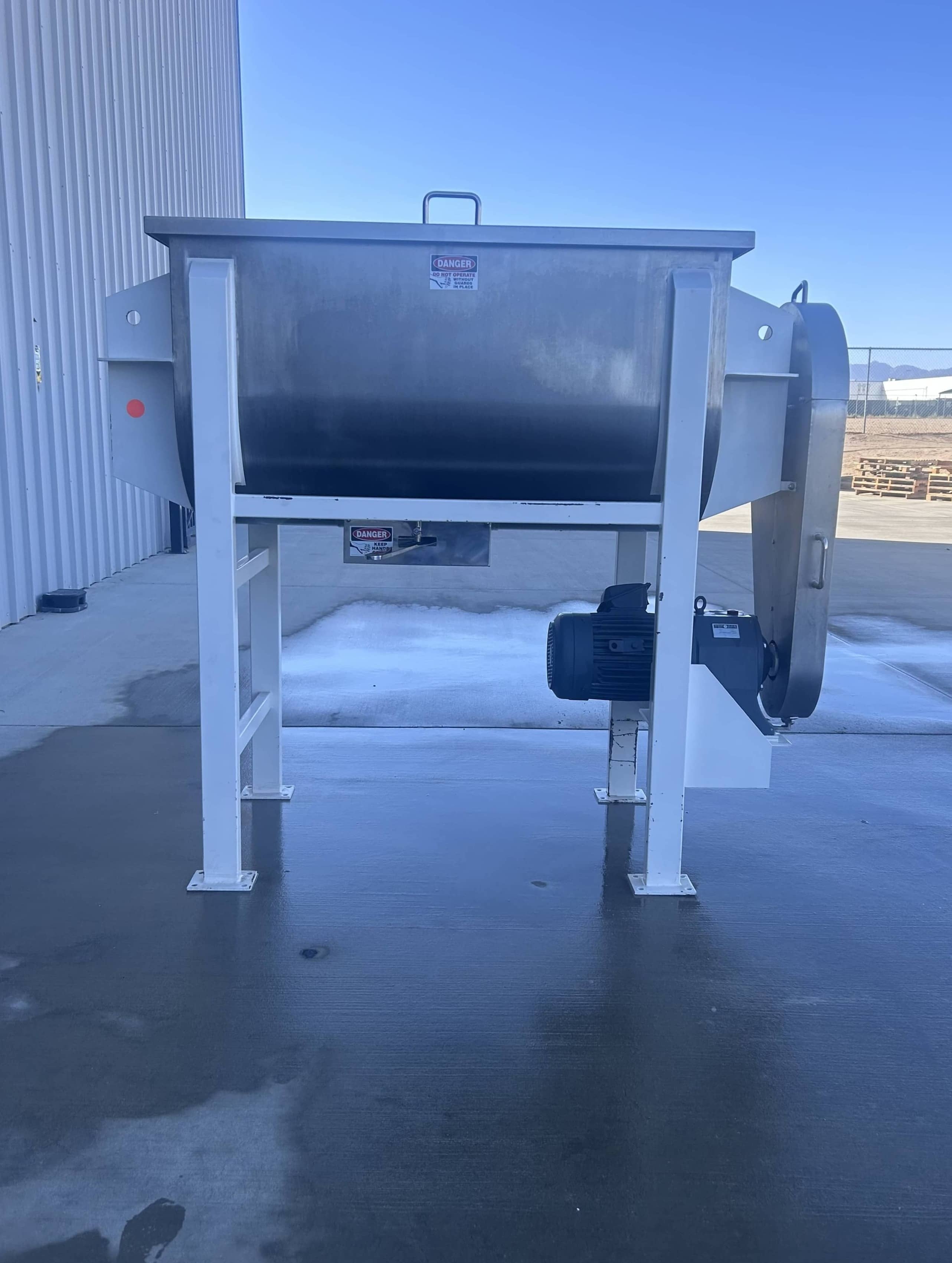

L025CSC CARBON STEEL W/EPOXY PAINT 25 CUBIC FOOT DOUBLE RIBBON BLENDER |
| MOTOR | TEFC CHAIN DRIVE |
| HEAVY DUTY | TURNS AT 45 RPM |
| HORSEPOWER | 10 WITH SERVICE FACTOR OF 1.20+ |
| PHASE | 3 |
| VOLTS | 220 / 440 |
| AMPS | 25.4 / 12.7 |
| CENTERED DISCHARGE | 6” W/ A PIVOT STYLE GATE |
| OVERALL | L- 80.5” W- 36.5” H- 75” |
| TUB SIZE | L- 58” W- 29” H- 32” |
| TUB SIDEWALL THICKNESS |
4 MM |
| SOLID STAINLESS STEEL MAIN SHAFT DIAMETER | 3” |
| DISCHARGE SHROUD TO FLOOR | 35.5” |
| SHIPPING WEIGHT | 2,500 LBS. |
| WORKING CAPACITY (GALLONS) WORKING CAPACITY (LITERS) |
187 708 |
