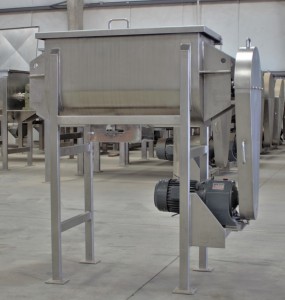

10 Cubic Foot Chain Drive Ribbon Blender
L010CS - 10 Cubic Foot Ribbon Blender with Chain Drive and Pivot Style Gate
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Manually Operated Center Discharge with a Pivot Style Gate
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on remaining blender against manufacturing defects.
Specifications
| Description | L010CS |
|---|---|
| 1 Lid / 1 Grate | 10 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Chain Drive |
| Heavy Duty | Turns at 60 RPM |
| Horsepower | 5 (with Service Factor of 1.20+) |
| Phase | 3 |
| Volts | 220 / 440 |
| Amps | 13.5 / 6.75 |
| Centered Discharge | 4.5” with a Pivot Style Gate |
| Overall | L- 64” W- 28.5” H- 72” |
| Tub Size | L- 43” W- 22” H- 26” |
| Tub/Sidewall Thickness | 4 mm |
| Solid Stainless Steel Main Shaft Diameter | 2.5” |
| Discharge Shroud to Floor | 39” |
| Shipping Weight | 1,100 lbs. |
| Working Capacity (Gallons) | 75 |
| Working Capacity (Liters) | 283 |
