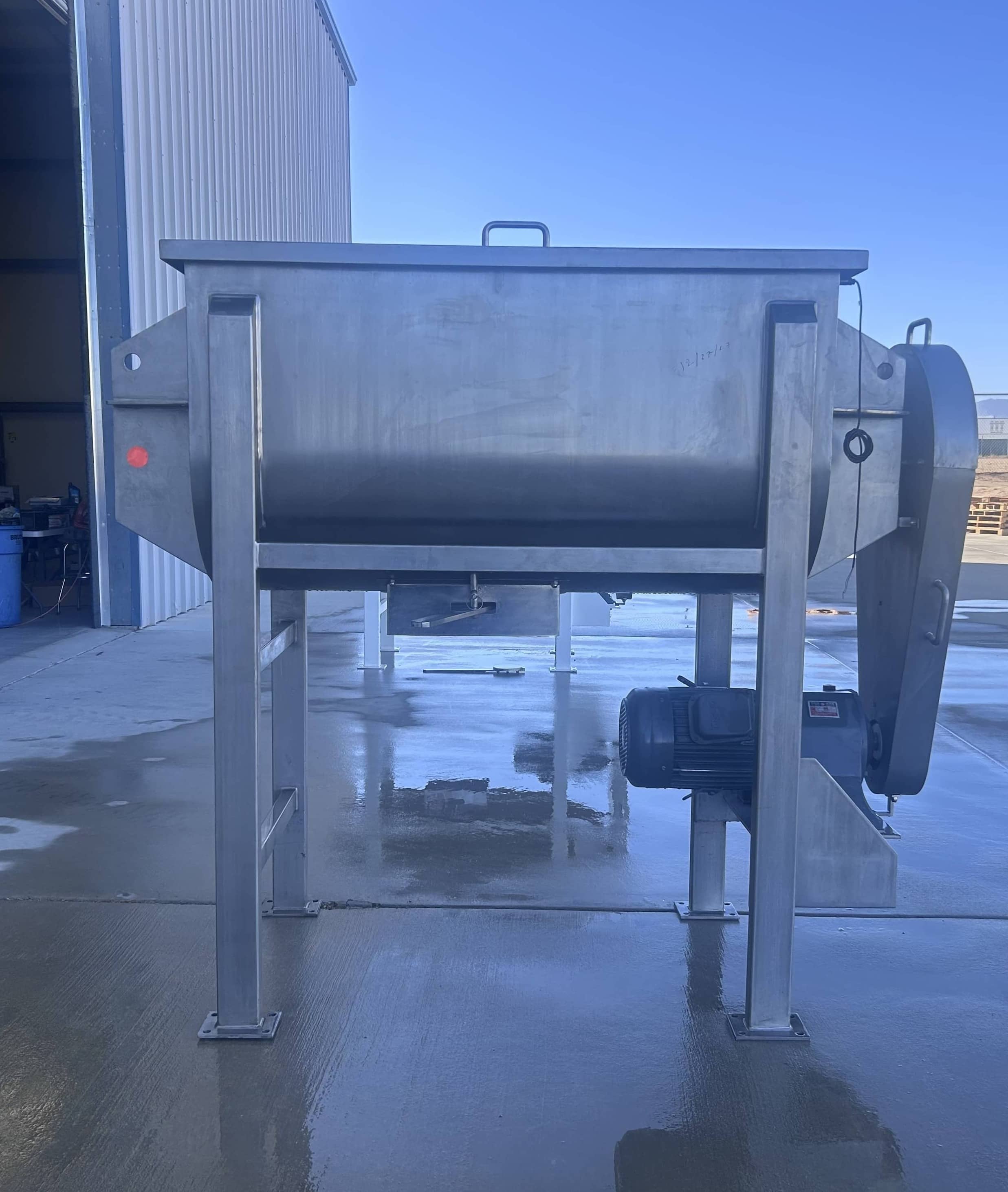

25 Cubic Foot Ribbon Blender
L025CS - 25 Cubic Foot Ribbon Blender with Pivot Style Gate
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Manually Operated Center Discharge with Pivot Style Gate
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on remaining blender against manufacturing defects.
Specifications
| Description | L025CS |
|---|---|
| 1 Lid / 1 Grate | 25 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Chain Drive |
| Heavy Duty | Turns at 45 RPM |
| Horsepower | 10 with Service Factor of 1.20+ |
| Phase | 3 |
| Volts | 220 / 440 |
| Amps | 25.4 / 12.7 |
| Centered Discharge | 6" with Pivot Style Gate |
| Overall | L- 80.5" W- 36.5" H- 75" |
| Tub Size | L- 58" W- 29" H- 32" |
| Tub/Sidewall Thickness | 4 MM |
| Solid Stainless Steel Main Shaft Diameter | 3" |
| Discharge Shroud to Floor | 35.5" |
| Shipping Weight | 2,500 lbs. |
| Working Capacity (Gallons) | 187 |
| Working Capacity (Liters) | 708 |
