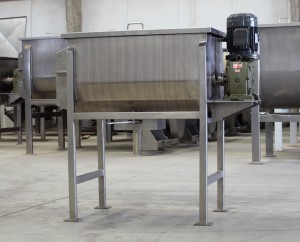

15 Cubic Foot Ribbon Blender
L015DS - 15 Cubic Foot Ribbon Blender
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on remaining blender against manufacturing defects.
Specifications
| Description | L015DS |
|---|---|
| 1 Lid / 1 Grate | 15 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Direct Drive |
| Heavy Duty | Turns at 43 RPM |
| Horsepower | 7.5 |
| Phase | 3 |
| Volts | 230 / 460 |
| Amps | 19.8 / 9.90 |
| Centered Discharge | 5” with Pivot Style Gate or Sanitary Butterfly Valve |
| Overall | L- 70.5” W- 31.5” H- 69” |
| Tub Size | L- 48” W- 25” H- 29” |
| Tub/Sidewall Thickness | 3 mm |
| Solid Stainless Steel Main Shaft Diameter | 2.375” |
| Discharge Shroud to Floor | 30” |
| Shipping Weight | 1,031 lbs. |
| Working Capacity (Gallons) | 112 |
| Working Capacity (Liters) | 425 |
