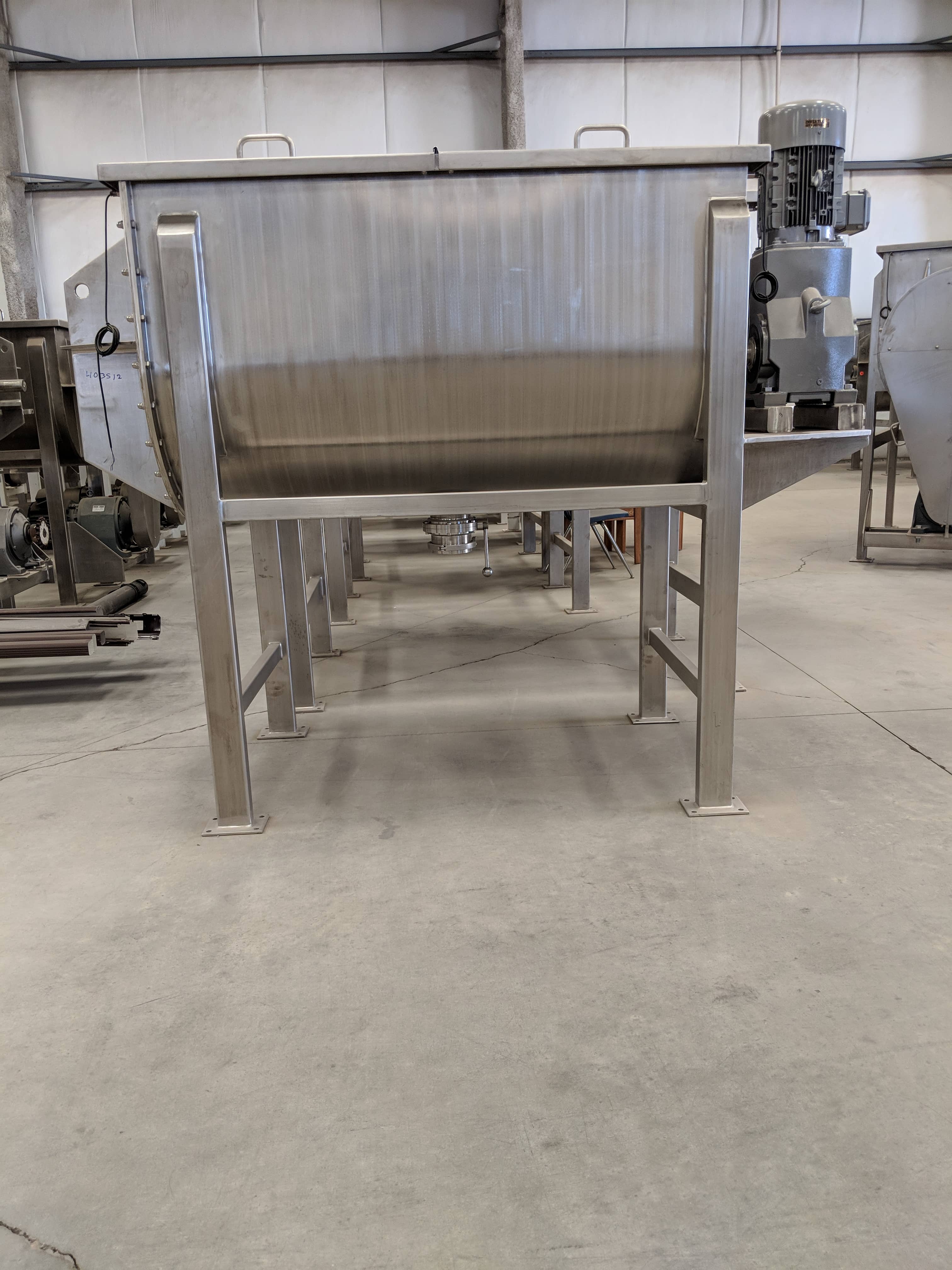

35 Cubic Foot Ribbon Blender
L035DS - 35 Cubic Foot Direct Drive All Stainless Steel Ribbon Blender
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Manually Operated Center Discharge with Pivot Style Gate
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on remaining blender against manufacturing defects.
Specifications
| Description | L035DS |
|---|---|
| 2 Lid / 2 Grate | 35 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Direct Drive |
| Heavy Duty | Turns at 32 RPM |
| Horsepower | 15 |
| Phase | 3 |
| Volts | 230 / 460 |
| Amps | N/A |
| Centered Discharge | 6" with Pivot Style Gate or Butterfly Valve |
| Overall | L- 91" W- 45" H- 75" |
| Tub Size | L- 64" W- 33" H- 36" |
| Tub/Sidewall Thickness | 4 mm |
| Solid Stainless Steel Main Shaft Diameter | 3.375" |
| Discharge Shroud to Floor | 32" |
| Shipping Weight | 1,715 lbs. |
| Working Capacity (Gallons) | 262 |
| Working Capacity (Liters) | 991 |
