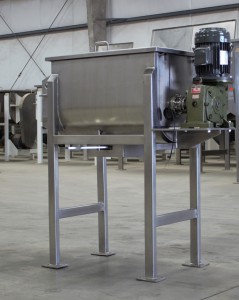

5 Cubic Foot Ribbon Blender
L050DS - 5 Cubic Foot Ribbon Blender with Pivot Style Gate
Standard Features
- Made to Sanitary Specifications
- 304 Stainless Steel
- Split Ring Seals
- Air Purge
- 304 Stainless Steel Lid and Grate
- 180 grit finish on interior
- Safety Limit Switches (prevents operation when grates are removed)
- Manually Operated Center Discharge with Pivot Style Gate
Warranty
One year warranty on the ribbon and shaft against manufacturing defects. One year warranty on remaining blending against manufacturing defects.
Specifications
| Description | L05.5DS |
|---|---|
| 1 Lid / 1 Grate | 5 Cubic Foot Double Ribbon Blender |
| Motor | TEFC Direct Drive |
| Heavy Duty | Turns at 58 RPM |
| Horsepower | 3 |
| Phase | 3 |
| Volts | 220 / 440 |
| Amps | 8.18 / 4.09 |
| Centered Discharge | 4” with a Pivot Style Gate |
| Overall | L- 52” W- 21.5” H- 56.5” |
| Tub Size | L- 32” W- 18” H- 21.75” |
| Tub/Sidewall Thickness | 3 mm |
| Solid Stainless Steel Main Shaft Diameter | 1.875” |
| Discharge Shroud to Floor | 28” |
| Shipping Weight | 586 lbs. |
| Working Capacity (Gallons) | 37 |
| Working Capacity (Liters) | 142 |
